Call for pricing
Product Number: 19

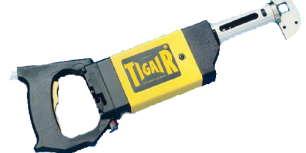

The TIGAIR SAW® reciprocating air saw is used in industrial and emergency service applications. It is ideal for cutting many different types of material such as metal, plastic, fiberglass, dry wall, cement, and wood.
| Specifications: | U.S. System | Metric | |
|---|---|---|---|
| Weight | 5.58 lbs. | 2.531 | The saw's light weight makes it suitable for one hand use if necessary |
| Size | 1.625" W | 4.128 cm W | The saw can be used in confined spaces because of it's small size |
| 5.750" H | 14.605 cm H | ||
| 16.000" L | 40.640 cm L | ||
| Hose Size | .375" | .953cm | Standard 3/8" hose size is recommended |
| Strokes per min. | 0 to 1200 | 0 to 1200 | Can easily be adjusted during operations to maintain any speed from stop to 1200 strokes per minute. |
| Stroke Length | 1.750" | 4.445 cm | Twin piston power provides for continuous smooth power during forward and rearward stroke |
| Air Consumption | 6.5 cu. ft | .182 cu m | The saw can utilize air from any source capable of generating 6.5 cu. feet of air per minute. |
| Air pressure | 90-110 psi. | 6 to 7.333 bars | The saw operates at its best with 90 to 110 psi. |
| Blade | .500" H | 1.270 cm H | The saw uses standard hacksaw, sectional band or modified reciprocating saw blades. |
| .025 to .035 T | .0635 cm to .0899 cm T | ||
| Standards | OSHA | The saw meets OSHA standards | |
| Approval | Gov't | Federal Government National Stock Number 5130-01-0540737 CAGE Code for L.C. Miller Co. 09260 | |
| Conformity |  |
Hand-Held Non-Electric Power Tools - Safety Requirements. Part 12: Small Circular, Small Oscillating and Reciprocating Saws, EN 792-12:2000 |
